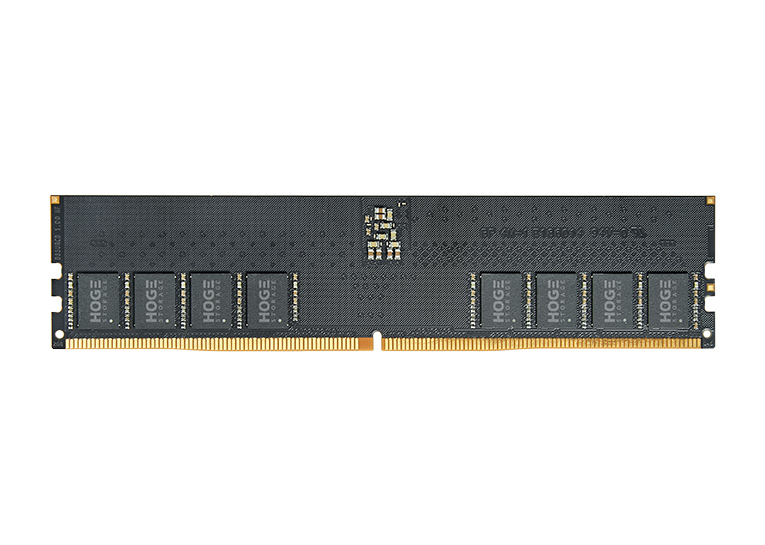

The universal series DDR5 UDIMM memory products refer to JEDEC design specifications and meet low-power and high-speed cache functions through independent technical features. They provide cost-effective memory solutions and can provide customized supply solutions for the entire process according to customer needs.
Scope Of Application：Desktop computer
| Data bus：32-bit x2 with two independent sub channels | Interface：288PIN UDIMM |
| Architecture：1Rx8/2Rx8 | Voltage：VDD = VDDQ = 1.1V （-3%+6%） |
| Operating Temperature：0℃ to 70 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：133.35(+0.45/-0.15)mm x 31.25(+0.55/-0.15) mm x 1.27 ± 0.1 mm | Compliance：RoHS 2.0 |
| Speed：4800Mbps/5600Mbps | CL：40x/46x |
| tCK：0.416ns/0.357ns | Timing：40-39-39/46-45-45 |
| VPP：1.8V | Banks：x8 32 Banks (8 Bank Groups) |
| Address：A0~A16 Max. | PMIC：2+1 Channal Power management on module |
| PMIC Support: 1.435V Max. | ODE：On-die ECC function |
| SBR：Same-Bank Refresh mode | ODT：Expand CA / CS signal ODT |
| BL：16n-bit pre-fetch architecture | PCB Layer：10 Layer Max. |
| RoHS：All of Lead-Free products are compliant for RoHS | |
