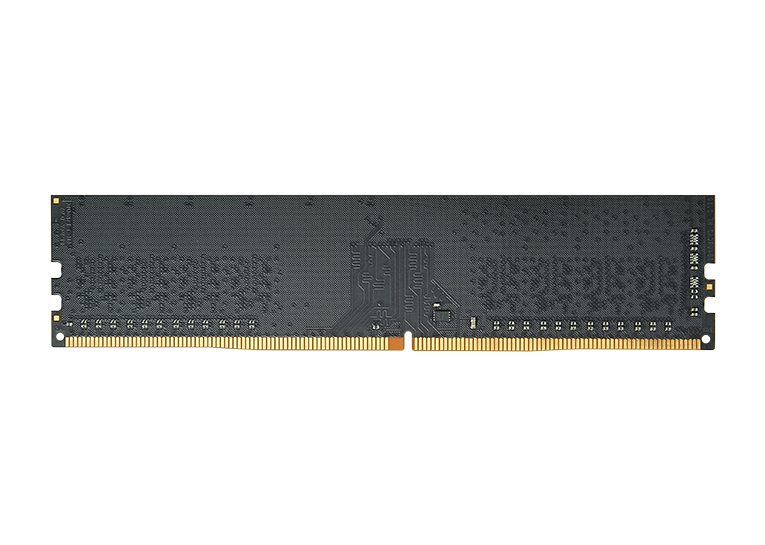

The universal series DDR4 UDIMM memory products refer to JEDEC design specifications and meet low-power and high-speed cache functions through independent technical features, providing cost-effective memory solutions and offering customized supply solutions for the entire process according to customer needs.
Scope Of Application：Desktop computer
| Data bus：64-bit DDR4 Unbuffered Non-ECC | Interface：288PIN UDIMM |
| Architecture：1Rx8/2Rx8/1Rx16 | Voltage：VDD = VDDQ = 1.2V ± 60mV |
| Operating Temperature：0℃ to 70 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：133.35 x 31.25（±0.15mm）x 1.4(±0.1mm) | Compliance：RoHS 2.0 |
| PCB Solder mask：Black/Green |
| Speed：2666Mbps/3200Mbps | CL：19x/22x |
| tCK：0.75ns/0.625ns | Timing：19-19-19/22-22-22 |
| VPP：2.5V | Banks：x8 32 Banks (8 Bank Groups) x16 8 Banks (2 Bank Groups) |
| Address：A0~A15 Max. | ODT：On Die Termination using ODT pin |
| CRC：Cyclic Redundancy Check for Read/Write data security | RoHS：All of Lead-Free products are compliant for RoHS |
