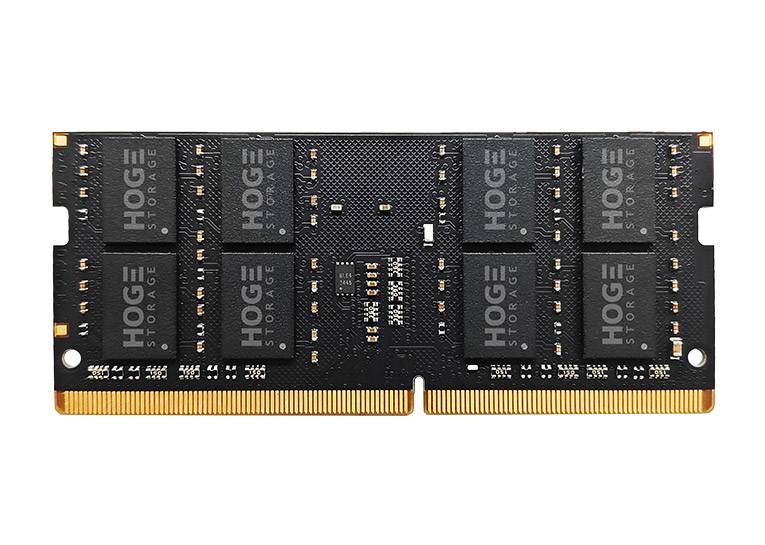

The Intel dedicated series DDR4 SODIMM memory products adopt special design specifications and provide cost-effective complete memory technology solutions on the Intel platform architecture through independent technical solutions. They can also provide customized supply solutions for the entire process according to customer needs.
Scope Of Application：Intel series laptops, all-in-one computers, Mini PCs, etc
| Data bus：64-bit DDR4 Unbuffered Non-ECC | Interface：260PIN SODIMM |
| Architecture：1Rx4 | Voltage：VDD = VDDQ = 1.2V ± 60mV |
| Operating Temperature：0℃ to 70 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：69.6 x 30（±0.15mm）x 1.2(±0.1mm) | Compliance：RoHS 2.0 |
| PCB Solder mask：Black/Green |
| Speed：2666Mbps/3200Mbps | CL：19x/22x |
| tCK：0.75ns/0.625ns | Timing：19-19-19/22-22-22 |
| VPP：2.5V | Banks：x4 16 Banks (4 Bank Groups) |
| Address：A0~A16 Max. | ODT：On Die Termination using ODT pin |
| CRC：Cyclic Redundancy Check for Read/Write data security | RoHS：All of Lead-Free products are compliant for RoHS |
