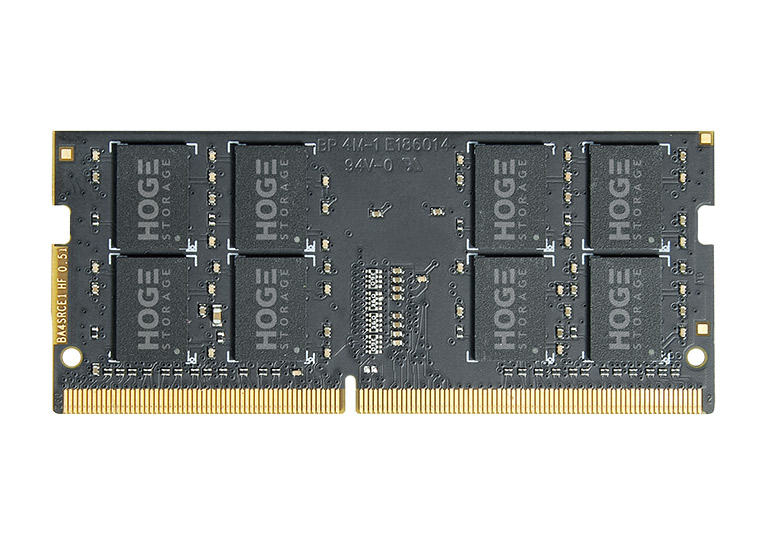

The universal series DDR4 SODIMM memory products adhere to JEDEC design specifications, offering low power consumption and high-speed caching capabilities through independent technological features. They provide a cost-effective memory solution and can offer a fully customized supply solution according to customer needs.
Scope Of Application：Laptops, all-in-one computers, thin clients, Mini PCs, educational OPS, POS cash registers
| Data bus：64-bit DDR4 Unbuffered Non-ECC | Interface：260PIN SODIMM |
| Architecture：1Rx8/2Rx8/1Rx16 | Voltage：VDD = VDDQ = 1.2V ± 60mV |
| Operating Temperature：0℃ to 70 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：69.6 x 30（±0.15mm）x 1.2(±0.1mm) | Compliance：RoHS 2.0 |
| PCB Solder mask：Black/Green |
| Speed：3200Mbps | CL：22x |
| tCK：0.625ns | Timing：22-22-22 |
| VPP：2.5V | Banks：x8 16 Banks (4 Bank Groups) x16 8 Banks (2 Bank Groups) |
| Address：A0~A16 Max. | ODT：On Die Termination using ODT pin |
| CRC：Cyclic Redundancy Check for Read/Write data security | RoHS：All of Lead-Free products are compliant for RoHS |
