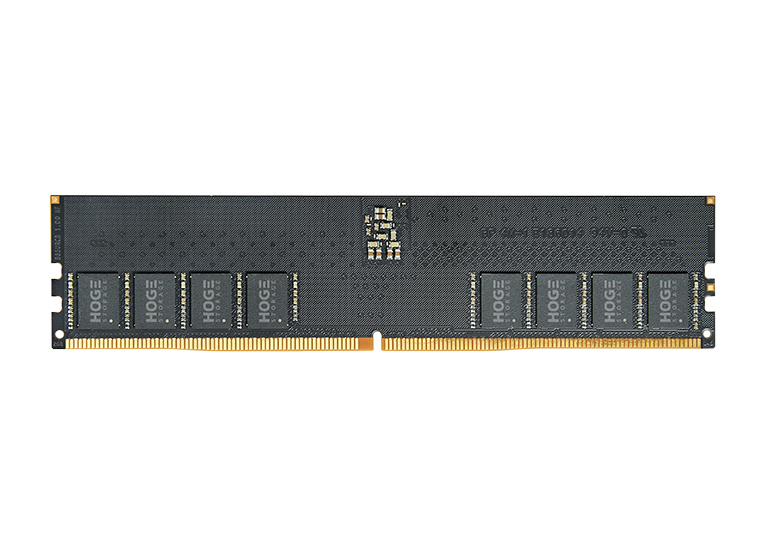

The HOGE A series standard DDR5 UDIMM fully adheres to JEDEC design specifications, utilizing the latest mainstream DDR5 SDRAM memory chips and mature PCB design versions. It offers a new generation of architecture with lower power consumption and higher bandwidth caching capabilities, featuring wide compatibility, stability, reliability, and excellent performance.
Scope Of Application：Desktop computers, small workstations, edge computing devices, data acquisition equipment
| Data bus：32-bit x2 with two independent sub channels | Interface：288PIN UDIMM |
| Architecture：1Rx8/2Rx8 | Voltage：VDD = VDDQ = 1.1V （-3%+6%） |
| Operating Temperature：0℃ to 85 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：133.35(+0.45/-0.15)mm x 31.25(+0.55/-0.15) mm x 1.27 ± 0.1 mm | Compliance：RoHS 2.0 |
| Speed：5600Mbps | CL：46x |
| tCK：0.357ns | Timing：46-45-45 |
| VPP：1.8V | Banks：x8 32 Banks (8 Bank Groups) |
| PMIC：2+1 Channal Power management on module | PMIC Support: 1.435V Max. |
| Address：A0~A16 Max. | SBR：Same-Bank Refresh mode |
| ODE：On-die ECC function | BL：16n-bit pre-fetch architecture |
| ODT：Expand CA / CS signal ODT | PCB Layer：10 Layer Max. |
| RoHS：All of Lead-Free products are compliant for RoHS |
