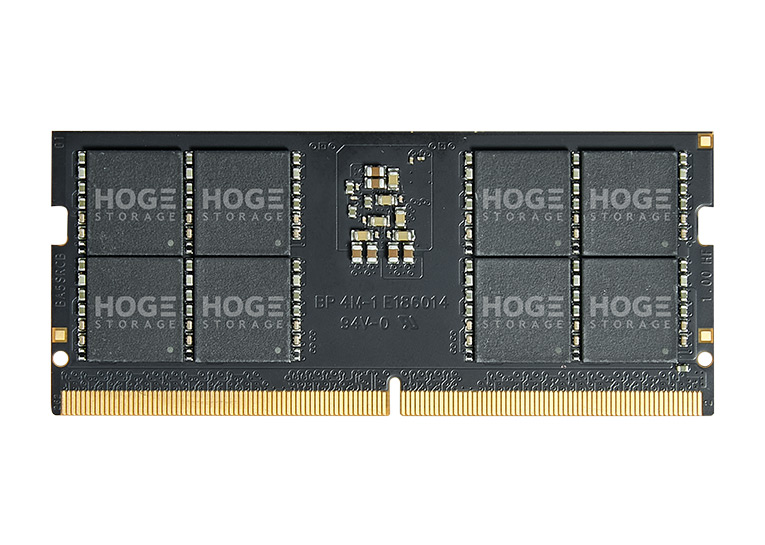

The HOGE A series standard DDR5 SODIMM fully adheres to JEDEC design specifications, using the latest mainstream DDR5 SDRAM storage chip and mature PCB design versions, providing a new generation of architecture with lower power consumption and higher bandwidth cache function applications. It has the characteristics of wide compatibility, stability and reliability, and excellent performance.
Scope Of Application：Esports laptops, laptops, all-in-one machines, thin client machines, educational OPS, mobile industrial control computers, bank self-service terminals, cash register systems, network monitoring systems, traffic monitoring systems
| Data bus：32-bit x2 with two independent sub channels | Interface：262PIN SODIMM |
| Architecture：1Rx8/2Rx8 | Voltage：VDD = VDDQ = 1.1V （-3%+6%） |
| Operating Temperature：0℃ to 85 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：69.6±0.1mm x 30.0±0.15 mm x 1.2 ± 0.1 mm | Compliance：RoHS 2.0 |
| Speed：5600Mbps | CL：46x |
| tCK：0.357ns | Timing：46-45-45 |
| VPP：1.8V | Banks：x8 32 Banks (8 Bank Groups) |
| PMIC：2+1 Channal Power management on module | PMIC Support: 1.435V Max. |
| ODE：On-die ECC function | SBR：Same-Bank Refresh mode |
| ODT：Expand CA / CS signal ODT | BL：16n-bit pre-fetch architecture |
| Address：A0~A16 Max. | PCB Layer：10 Layer Max. |
| RoHS：All of Lead-Free products are compliant for RoHS |
