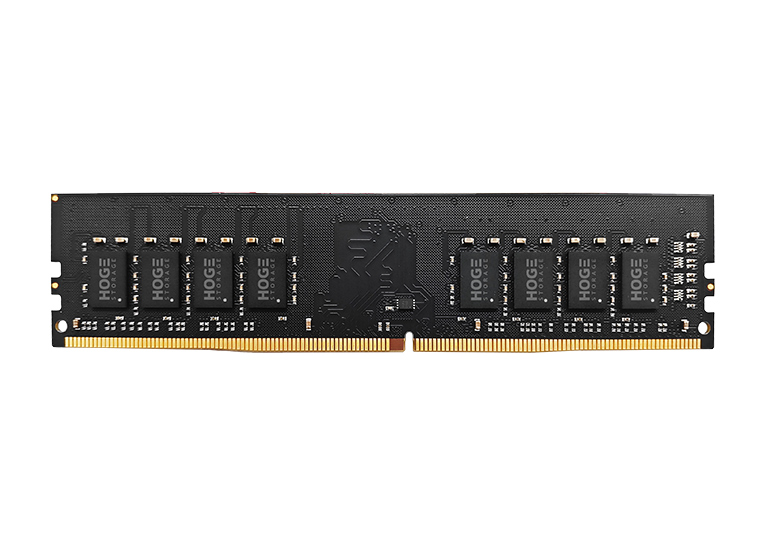

The HOGE Z series memory products adopt special design specifications and provide a cost-effective complete memory technology solution on the Intel platform architecture through independent technical solutions.
Scope Of Application：Intel series desktop computers
| Data bus：64-bit DDR4 Unbuffered Non-ECC | Interface：288PIN UDIMM |
| Architecture：1Rx4 | Voltage：VDD = VDDQ = 1.2V ± 60mV |
| Operating Temperature：0℃ to 70℃(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：133.35 x 31.25（±0.15mm）x 1.4(±0.1mm) | Compliance：RoHS 2.0 |
| Speed：3200Mbps/2666Mbps | CL：22x/19x |
| tCK：0.625ns/0.75ns | Timing：22-22-22/19-19-19 |
| VPP：2.5V | Banks：x4 16 Banks (4 Bank Groups) |
| Address：A0~A16 Max. | ODT：On Die Termination using ODT pin |
| CRC：Cyclic Redundancy Check for Read/Write data security | RoHS：All of Lead-Free products are compliant for RoHS |
