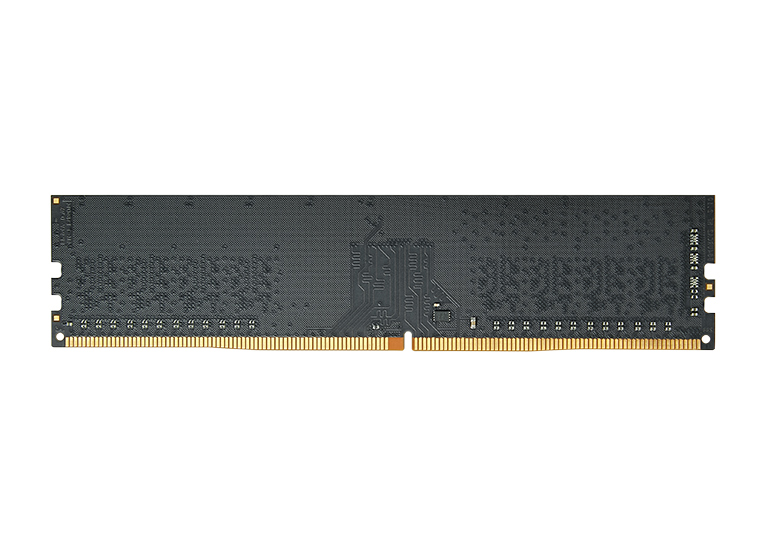

The HOGE C series standard DDR4 UDIMM follows JEDEC design specifications and provides a cost-effective memory solution with independent technical features to meet high-speed caching requirements.
Scope Of Application：Desktop computer
| Data bus：64-bit DDR4 Unbuffered Non-ECC | Interface：288PIN UDIMM |
| Architecture：1Rx8/2Rx8/1Rx16 | Voltage：VDD = VDDQ = 1.2V ± 60mV |
| Operating Temperature：0℃ to 70 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：133.35 x 31.25（±0.15mm）x 1.4(±0.1mm) | Compliance：RoHS 2.0 |
| Speed：2666Mbps | CL：19x |
| tCK：0.75ns | Timing：19-19-19 |
| VPP：2.5V | Banks：x8 16 Banks (4 Bank Groups) x16 8 Banks (2 Bank Groups) |
| Address：A0~A15 Max. | ODT：On Die Termination using ODT pin |
| CRC：Cyclic Redundancy Check for Read/Write data security | RoHS：All of Lead-Free products are compliant for RoHS |
