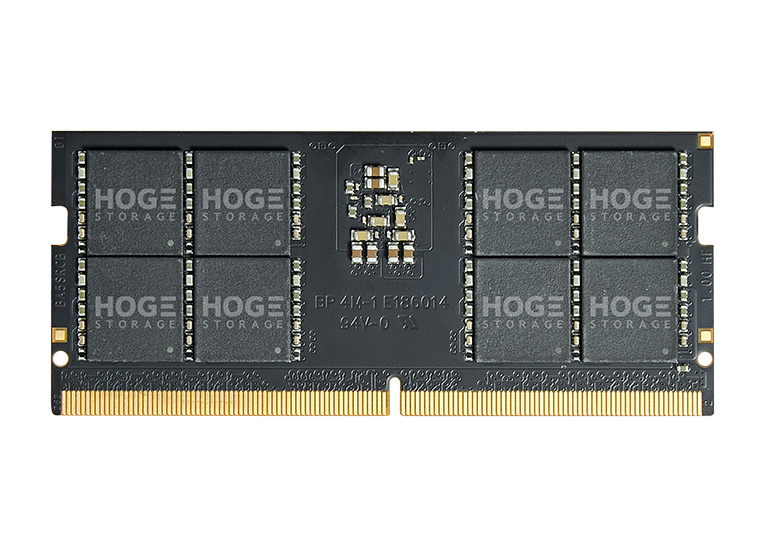

The universal series DDR5 SODIMM memory products refer to JEDEC design specifications and meet low-power and high-speed cache functions through independent technical features. They provide cost-effective memory solutions and can provide customized supply solutions for the entire process according to customer needs.
Scope Of Application：Laptops, all-in-one computers, slim client computers Mini PC、 Education OPS, POS cash register
| Data bus：32-bit x2 with two independent sub channels | Interface：262PIN SODIMM |
| Architecture：1Rx8/2Rx8 | Voltage：VDD = VDDQ = 1.1V （-3%+6%） |
| Operating Temperature：0℃ to 70 ℃ (Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：69.6 x 30 (±0.15mm) x 1.2 (±0.1mm) | Compliance：RoHS 2.0 |
| Speed：4800Mbps/5600Mbps | CL：40x/46x |
| tCK：0.416ns/0.357ns | Timing：40-39-39/46-45-45 |
| VPP：1.8V | Banks：x8 32 Banks (8 Bank Groups) x16 16Banks (4 Bank Groups) |
| PMIC：2+1 Channal Power management on module | PMIC Support: 1.435V Max. |
| Address：A0~A16 Max. | SBR：Same-Bank Refresh mode |
| ODE：On-die ECC function | BL：16n-bit pre-fetch architecture |
| ODT：Expand CA / CS signal ODT | PCB Layer：10 Layer Max. |
| RoHS：All of Lead-Free products are compliant for RoHS |
