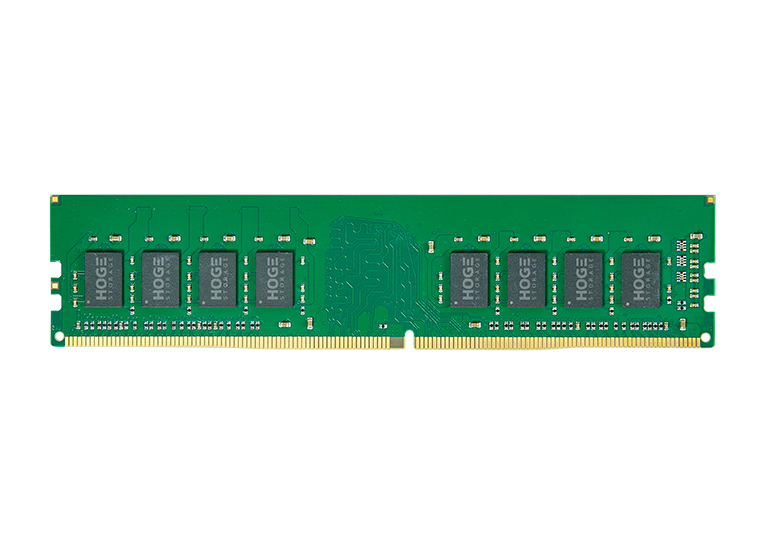

The HOGE A series standard DDR4 UDIMM fully adheres to JEDEC design specifications, using KGD grade DDR4 SDRAM memory chips and mature PCB design versions, providing high-speed cache functionality, and featuring wide compatibility, stability, reliability, and excellent performance.
Scope Of Application：Desktop computers, small workstations, edge computing machines, data acquisition devices
| Data bus：64-bit DDR4 Unbuffered Non-ECC | Interface：288PIN UDIMM |
| Architecture：1Rx8/2Rx8 | Voltage：VDD = VDDQ = 1.2V ± 60mV |
| Operating Temperature：0℃ to 70℃ , 85 ℃ Max.(Tcase) | Storage temperature：-55℃ to 100℃ |
| Size：133.35 x 31.25（±0.15mm）x 1.4(±0.1mm) | Compliance：RoHS 2.0 |
| Speed：3200Mbps | CL：22x |
| tCK：0.625ns | Timing：22-22-22 |
| VPP：2.5V | Banks：x8 16 Banks (4 Bank Groups) |
| Address：A0~A16 Max. | ODT：On Die Termination using ODT pin |
| CRC：Cyclic Redundancy Check for Read/Write data security | RoHS：All of Lead-Free products are compliant for RoHS |
HOGE STORAGE: Deeply Rooted in Storage, Leading the Data Future
